Gabion mesh machine

product purpose

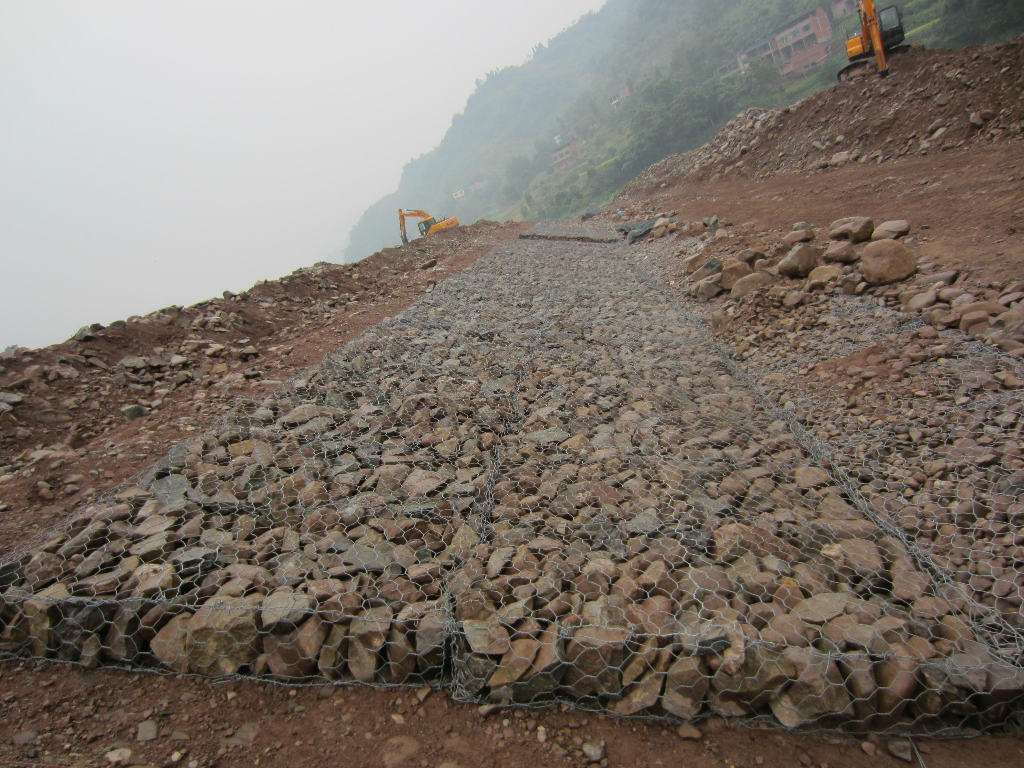

SH4300 type hexagonal mesh machine(also called gabion mesh machine) is one kind of special equipment for twisting metal wire hexagonal mesh with big wire, big mesh and wide breadth. The product has widely purpose, with its good corrosion resistance and oxidation resistance, serves well as strengthen, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries.

characteristics

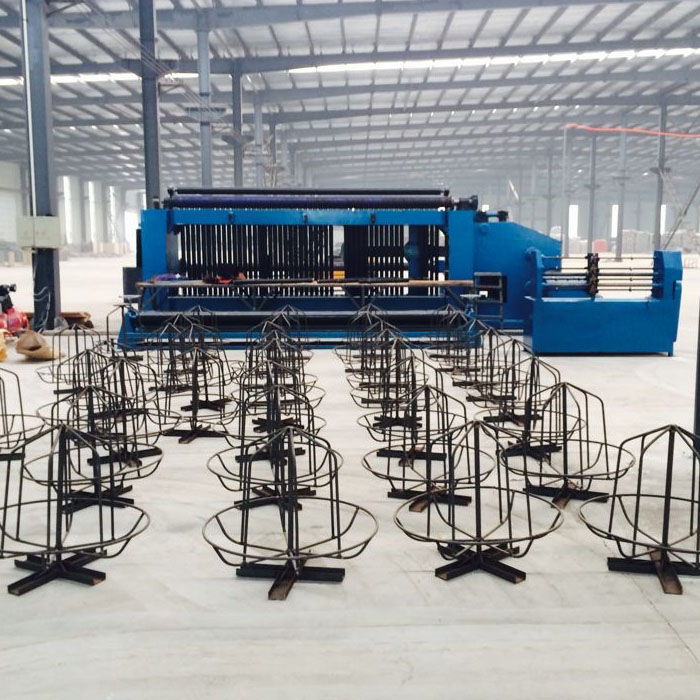

The machine is composed with main body, wire-wrapper and net-collector. It has the feature of rational design, simple structure, smooth running, excellent performance, reliable operation and convenient maintenance.

The main parts, such as drag plate, rack and half-gear are all made of special material with high quality though processing under advanced technologies.

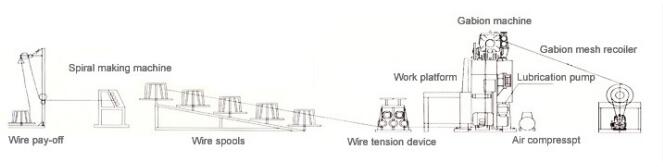

main constituent part：wire re-winding,mesh weaving machine, wire tension device and gabion mesh recoiler.

spare parts:  wire pay-off(2 sets), spiral making machine, lubrication pump

main parameter

v mesh size:80*100mm  （or different according your need)

v width: 4300mm

v wire diameter: 1.5--3.5mm( PVC wire 2.0--4.5mm)

v twister number: 3

v rotate speed: 25r/min

v power: 22KW

v output: 195m/hour( 32m per minute)

v weight: 13.5T

v Out side size:  main body: 7780*1300*2300mm

                 Wire tension device: 4850*680*800mm

                 Mesh recoiler: 4880*800*1140mm
